Note: For instructions on using the shopping cart, click here.

Color Coding:
Green - means that particular item is not hazardous whatsoever.
Orange - means that item is normally hazardous, but we can ship it without a hazmat fee (you must pay the 1 lb price for it though)
Red - means that the item must be shipped hazardously, regardless of qty ordered.

<==============================>
If you are placing an order with us online, you must be on file with us, regardless of what your first order is. This means that we have to have a signed in ink order form and a copy of your driver's license on file. If you do not have these things on file with us, it will just delay your order. You only have to do it once and then you can order whenever you would like. Go to our order form page to print out the order form there. Then you can use that to fill out and send in.
<==============================>

If at any time you want to review your order so far, please click below.



FIREFOX CYCLONE ELECTRIC MATCH - MODEL ROCKET & SPECIAL EFFECTS IGNITER

NON-EXPLOSIVE - NON-HAZARDOUS SHIPPING - NON-TOXIC! Our new “Cyclone” match has features no other electric match has. Our special mineral/oxide element contains NO HAZARDOUS PYROTECHNIC OXIDIZERS that create rapid/explosive combustion rates, environmental and ingested toxicity, low heat sensitivity and special shipping regulations yet they will ignite reliably using a 12 volt automotive battery and combust creating a short burn in excess of 2000 DEGREES F! They are safer to use and cannot be accidentally ignited by normal static electricity or strong CB or radio interference. Safer to store - lacquer sealed conductive mineral elements are sealed in a poly barrier bag. Heat stabilized - they will not ignite even at temperatures of 3500F. Resistance is 1.0
to 3.0 ohms (1.9 ohms average). Legend: SB (small bulb), LB (large bulb).

F525/SB - MODEL ROCKET IGNITER - 6 INCH LENGTH - 1 DOZ.
F525/SBC - MODEL ROCKET IGNITER - 6 INCH LENGTH - BOX OF 96
F525/LB - COMPOSITE ROCKET IGNITER - 12 INCH LEADS
F525/LBC - COMPOSITE ROCKET IGNITER - BOX OF 96
F525/18LB - COMPOSITE ROCKET IGNITER - 18 INCH LEADS
F52518LBC - COMPOSITE ROCKET IGNITER - BOX OF 96

CURRENTLY WE ARE NOT SHIPPING THE ABOVE LISTED CYCLONE IGNITERS. They can however, be picked up at our facility.


CYCLONE™ RC ELECTRIC MATCH PRODUCTION SET - LOW VOLTAGE

Similar in construction to the famous Davey Fire match but designed to produce results unequaled anywhere, our Cyclone™ RC Electric match ignites flawlessly on as little as 1.5 volts - .5 amperes (single alkaline AA battery) and combusts for 1-2 seconds at over 2000 DEGREES F emitting lots of sparks and molten slag to ignite stubborn compositions or devices. Very impressive! The kit comes with everything needed including bridgewire chips to produce 50 igniters with 12” leads. Very easy, simply solder element “chip” to lead, mix pre-measured pyrogen and dip igniter followed by a final dip in lacquer sealant - all included. Excellent for remote control use! Average resistance is 1.3 ohms. Non explosive ignition!   All you need is solder, Ruby Fluid soldering flux and soldering iron.

KT500 LOW VOLTAGE RC MATCH SET   Non-hazmat shipping - No ATFE required to order!

(1lb/kit)
Compare ours to kits available elsewhere!

Order.gif (311 bytes)  (per kit)                                            Colorfully packaged for retail sales


HOMEMADE ELECTRIC MATCHES FOR JUST PENNIES EACH!!
Our competition sells a similar igniter kit (as below) for over $52.00!!

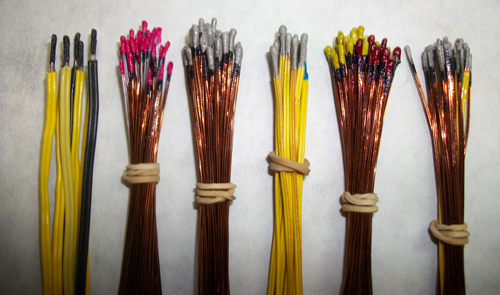

LIQUID ELEMENT™ CONDUCTIVE ELECTRIC MATCH PRIMER/PYROGEN

Now you can make electric igniters that require NO SOLDERING OF BRIDGEWIRES TO LEADS yet will ignite reliably using as little as a 9 volt "transistor" battery up to and including 12 volt automotive and every DC voltage in between! Simply strip 3/16" of insulation from lead wires and dip into the primer slurry - allow to dry and use as is or dip them again in your favorite match composition/pyrogen. Make 50 to 100 igniters per hour for as little as 5 cents each - with no soldering! Our procedure allows you to use your lead wires over and over saving you money and time. Each bottle comes with complete instructions and enough primer and binder to make up to 400 igniters (allowing for 10-15% as waste). Liquid Element™ acts as both primer/booster and pyrogen! Basically foolproof!
  This is our most popular selling pyrogen kit for over 15 years!!

SECPLEL - ELECTRIC IGNITER PYROGEN/PRIMER   Non-hazmat shipping- No ATFE required to order.

(3oz/bottle)
  Compare ours to kits available elsewhere!


Order.gif (311 bytes)  (per case of 25 kits - $399.00/case (ship wt 6 lbs)      Colorfully packaged for retail sales


order


ELECTRIC SQUIB AND IGNITER PYROGEN

Make your own electric igniters for a few pennies each using our pyrogen and any number of DC powered heating elements. Simply solder nichrome wire, tinned copper wire or printed igniter "chips" to 22 or 24 gauge twin lead wire, dip in the pyrogen and use. The pyrogen comes in 1/2 oz bottles that you mix a small amount of Acetone to make a thick batter for dipping - enough for 50 to 90 igniters. Comes with instructions. Why pay over $1.00 each for commercial igniters?! We recommend our Firefox Custom Chips (Stock# F515F instead of the Davey Clones 51 awg) or homemade elements using resistance wire diameters between 35 and 45 awg for best ignition.

SECSQUIB - 1/2oz BOTTLE - FS    Non-hazmat shipping- No ATFE required to order.
$15.95/bottle (3oz/bottle)   Compare ours to kits available elsewhere!
Order.gif (311 bytes)  (case of 25 kits - $338..00/case - (ship wt 6 lbs)
     Colorfully packaged for retail sales


order


ELECTRIC IGNITER PYROGEN - PYROMAG™ MAGNUM SECONDARY PYROGEN

Our Pyromag magnum™  pyrogen has a higher combustion temp and burns longer (typically 2 to 3 seconds) than other pyrogens and because of the molten product and superheated sparks, it is capable of igniting the most difficult of applications. It should be used as an overcoal with a primer such as ELV or Liquid Element for reliable ignition. This professional secondary pyrogen is used extensively by special effects and rocket enthusiasts for positive ignition!

SECPMAG - 1/2oz BOTTLE - FS    Non-hazmat shipping- No ATFE required to order.
$16.95/bottle (3oz/bottle)   Compare ours to kits available elsewhere!
     Colorfully packaged for retail sales


order

METALLIC H3 ELECTRIC MATCH PYROGEN

The Matallic H3 has a low enough ignition point to be used by itself on the element wire with no primer, however, it can be used as a secondary coat as well. It has a brilliant display of sparks when it fires for positive ignition of the application. As with all our pyregen kits, they come complete with adhesive, oxidizer and instructions. Why pay over $1.00 each for commercial igniters?

SECMH3 -   Non-hazmat shipping- No ATFE required to order.

(3oz/bottle)   Compare ours to kits available elsewhere!

Order.gif (311 bytes)   (case of 25 kits - $359.00/case - (ship wt 6 lbs)     Colorfully packaged for retail sales

order

E.L.V. NON-CONDUCTIVE ELECTRIC MATCH PYROGEN™

Designed to be used as the primer/ booster to initate the main pyrogen (secondary, which is coated over it), the ELV primers ignite easily at lower temperatures and combust (rather than pop) at a pre-determined rate at very high temperature to reliably ignite other pyrogens and metal mixtures used as an overcoat (optional). Using zirconium and other exotic metals, we have designed two different types - conductive and non-conductive. The conductive type requires no bridge-wire so there is no soldering and ignites with as little as a 9 volt transistor battery. Simply strip 3/8" of insulation from leads, dip the tip 1/8" into the primer, dry and dip it again in a pyrogen of your own making or use our Original Blend™, Pyromag Magnum™ or Metallic H3™ for results that will have other match-makers drooling at their sight! The non-conductive type is applied to the element wire (bridge-wire) only followed by an overcoat of another high energy pyrogen. It will ignite using as little as a AA (1.5 volt) battery. Using these primers, positive, inexpensive electric ignition is easily obtained! Each type comes with enough primer to make several hundred igniters (up to 500). Do you need smaller igniters for small black powder type motors? use the conductive ELV primer alone on 26 gauge twin lead wire with the final coat of NC or CA lacquer! Works great alone!

SECELV/NC -   Non-hazmat shipping- No ATFE required to order.

   $18.50/bottle (3oz/bottle)    Compare ours to kits available elsewhere!


Order.gif (311 bytes)  (case of 25 kits - $399.00/case (ship wt 6 lbs)      Colorfully packaged for retail sales

order

E.L.V. CONDUCTIVE ELECTRIC MATCH PYROGEN™

Designed to be used as the primer/ booster to initate the main pyrogen (which is coated over it), the ELV primers ignite easily at lower temperatures and combust (rather than pop) at a pre-determined rate at very high temperature to reliably ignite other pyrogens and metal mixtures used as an overcoat (optional). Using zirconium and other exotic metals, we have designed two different types - conductive and non-conductive. The conductive type requires no bridge-wire so there is no soldering and ignites with as little as a 9 volt transistor battery. Simply strip 3/8" of insulation from leads, dip the tip 1/8" into the primer, dry and dip it again in a pyrogen of your own making or use our Original blend™ Pyromag Magnum™ or Metallic H3™ for results that will have other match-makers drooling at their sight! The non-conductive type is applied to the element wire (bridge-wire) only followed by an overcoat of another high energy pyrogen. It will ignite using as little as a AA (1.5 volt) battery. Using these primers, positive, inexpensive electric ignition is easily obtained! Each type comes with enough primer to make several hundred igniters (up to 500). Do you need smaller igniters for small black powder type motors? Use the conductive ELV primer alone on 26 gauge twin lead wire with the final coat of NC or CA lacquer! Works great alone!

SECELV/C -   Non-hazmat shipping- No ATFE required to order.

   $18.50/bottle (3oz/bottle)   Compare ours to kits available elsewhere!


Order.gif (311 bytes) (case of 25 kits - $399.00/case (ship wt 6 lbs)      Colorfully packaged for retail sales




SEE OUR SECTION OF SPECIAL EFFECTS COMPOUNDS FOR OTHER ROCKETRY RELATED MATERIALS


                                                 BLACK POWDER ROCKETS

CONVOLUTE ROCKET MOTOR CASINGS:     Our injunction requires an ATFE manufacturing permit to order tubes 10" and shorter. Tubes longer than 10" can be purchases without ATFE permit. Our 24" long convolute (parallel) wound tubes may be ordered without ATFE and cut to length for use here.

       Made from high strength convolute / parallel wound Kraft paper

RE2
3/8" ID X 3 1/2" LONG (14mm)
GTP38/24
3/8" ID X 24" LONG X 3/32" WALL
Spollettes, falls, whistles,
2 oz rocket, shell inserts, hummers, ground chasers, etc.. Cut to desired length.
No ATFE required to order this length tube
RE4
1/2" ID X 5" LONG (19mm)
GTP12/24
1/2" ID X 24" LONG X 1/8" WALL
Candles, 4 oz rocket, candle, buzz bomb, whistles, gerbs, fountains, shell inserts, hummers, etc.. Cut to length.
No ATFE required to order this length tube
RE8
5/8" ID X 5 1/2" LONG (24mm)
GTP58/24
5/8" ID X 24" LONG 9/64" WALL
8 oz rocket, candle, hummer, gerbs, whistle & strobe rockets, fountains, spinners, #00 mortar, shell inserts, tourbillion, etc..
No ATFE required to order this length tube
RE16
3/4" ID X 7 1/2" LONG (29mm)
GTP34/24
3/4" ID X 24" LONG X 9/64" WALL
1 lb rocket, candle, gerbs, fountains, whistle & strobe rockets, tourbillion, #0 mortar, etc.. Cut to desired length.
No ATFE required to order this length tube
RE32
7/8" ID X 8" LONG X .1875" WALL X 1 1/4" OD
32oz rocket,
whistle & strobe rockets, candle, gerbs, fountains, tourbillions.
GTP78/24
7/8" ID X 24" LONG X .191" WALL X 1.260" OD
32oz rocket,
whistle & strobe rockets, candle, gerbs, fountains, tourbillions. Cut to desired length.
No ATFE required to order this length tube
RE48
1" ID X 10 1/4" LONG X 1/4" WALL (38mm)
48oz rocket engine, whistle & strobe rockets, candle, gerbs, fountains, tourbillion, #1 mortar, etc..
No ATFE required to order this length tube
GTP1/24
1" ID X 24" LONG X 1/8" WALL
48oz rocket engine (thin, light wt wall), candle, gerbs, fountains, whistle & strobe rockets, tourbillion, #1 mortar, etc.. Cut to desired length.
No ATFE required to order this length tube
WHISTLE ROCKET - 5/8" ID X 3 1/2" LONG X .835" OD (21mm)
Fits Two Stage Whistle Rocket tool set # TSWROC listed above



MOTOR TOOLING:

Precision made from solid aircraft aluminum. Sets come with complete instructions listing propellant formulas, coring spindle, base and rams.

See the Tooling page for Motor Tooling


CASE REINFORCING SLEEVES:

Schedule 40 sleeve fits over casing and is secured with hose clamps (not supplied). They support the case while ramming to prevent c
ase splitting. Absolutely necessary for proper compression.

CRS2Z   Order.gif (311 bytes)
Fits   2oz Motor Casings
$2.60/ea (2oz/ea)
CRS4Z   Order.gif (311 bytes)
Fits   4oz Motor Casings
$3.15/ea (2oz/ea)
CRS8Z   Order.gif (311 bytes)
Fits   8oz Motor Casings
$3.75/ea (4oz/ea)
CRS16Z   Order.gif (311 bytes)
Fits 16oz Motor Casings
$4.35/ea (4oz/ea)



ROCKET AIRFRAME TUBING - SPIRAL WOUND KRAFT


Strong lightweight spiral wound Kraft paper airframe tubing precision made for matching fit to components (nose cones, couplers, transition, motor mounts, etc.) # RBTS & RBTL may be cut in half for use. The # RFS plastic fin set fits the # RBTS.
RBTS   Order.gif (311 bytes) 12" long X .750" ID X .83" OD  Canary Yellow $ 9.00/doz   9 oz/doz
RBTL  Order.gif (311 bytes)
16" long X .875" ID X .955 " OD  Dull black $ 9.30/doz   12 oz/doz
RBT875   Order.gif (311 bytes) 18" long X .875" ID X .955" OD white & yellow $ 9.30/doz   1lb/doz
RBT113   Order.gif (311 bytes) 18" long X 1.13" ID X 1.17" OD
Bagged with 6 tubes and 3 couplers
 $6.00/9 pcs   6 oz/set
RBT150   Order.gif (311 bytes) 12" long X 1.50" ID X 1.59" OD
Bagged with 6 tubes and 3 couplers
$6.00/9 pcs 6 oz/set
RBT160S   Order.gif (311 bytes) 12" long X 1.60" ID X 1.64" OD
Bagged with 6 tubes and 3 couplers
$8.55/9 pcs  7 oz/set
RBT160   Order.gif (311 bytes) 18" long X 1.60" ID X 1.64" OD
Bagged with 6 tubes and 3 couplers
$9.75/9 pcs   8 oz/set
RBT200   Order.gif (311 bytes) 18" long X 2.00" ID X 2.04" OD
Bagged with 6 tubes and 3 couplers
$13.35/9.pcs   9 oz/set
RBT225   Order.gif (311 bytes) 22" long X 2.25" ID X 2.34" OD
Bagged with 6 tubes and 3 couplers
$20.00/9 pcs  11 oz/set
RBT390   Order.gif (311 bytes) 35" long X 3.90" ID X 4.00" OD with coupler
Sold as one tube with one coupler
$6.20/2 pcs  11 oz/set

ROCKET NOSE CONES


Lightweight precision machined balsa or blow molded plastic - fit body tubes as listed
RNCS   Order.gif (311 bytes) plastic - OAL 1.90" black (fits RBTS)   $6.75/50   8oz/50
RNCL   Order.gif (311 bytes) plastic - OAL 2.20" black (fits RBTL)   $7.50/50   8oz/50
RNC875   Order.gif (311 bytes) plastic - OAL 4.50" red & black (fits RBTL&RB875)   $ .95/ea   .35oz/ea
RNC113   Order.gif (311 bytes) balsa - OAL 4.25" (fits RBT113)     out of stock $3.75/ea   .60oz/ea
RNC160   Order.gif (311 bytes) balsa - OAL 6.70" (fits RBT160)      out of stock $6.45/ea   1.15oz/ea
RNC200   Order.gif (311 bytes) balsa - OAL 6.30" (fits RBT200)     out of stock $8.00/ea   .95oz/ea
RNC225   Order.gif (311 bytes) balsa - OAL 7.40" (fits RBT225)      out of stock $9.15/ea   3.00oz/ea



TRANSITION SECTIONS

Connects and reduces down one size airframe tube to a smaller one for staging effects. Lightweight and precision machined.

RTS113   Order.gif (311 bytes) balsa transition - (connects RBT113 & RBT200)    temp out $5.25/ea   1.25oz/ea
RTS160   Order.gif (311 bytes) balsa transition - (connects RBT160 & RBT200)    temp out $5.95/ea   1.60oz/ea

BULKHEAD SECTIONS

Solid precision machined balsa connects airframe of same size for complete blockage to construct payload sections or for staging.

RBS113   Order.gif (311 bytes) balsa bulkhead - (fits RBT113)      temp out $2.75/ea   .20oz/ea
RBS160   Order.gif (311 bytes) balsa bulkhead - (fits RBT160)      temp out $3.00/ea   .40oz/ea
RBS200   Order.gif (311 bytes) balsa bulkhead - (fits RBT200)      temp out $3.55/ea   .50oz/ea
RBS225   Order.gif (311 bytes) balsa bulkhead - (fits RBT225)      temp out $4.25/ea   1.00oz/ea

ROCKET FIN SETS - MOLDED PLASTIC

Molded plastic. Dimensions listed are millimeters.

RFS   Order.gif (311 bytes) Molded plastic 4 fin w/airframe mount rings (fits RBTS)   $7.25/25   1lb/25
RF48/76   Order.gif (311 bytes) Aircraft plywood 48mm X 76mm X 1/16" see below   discontinued .35oz/set
RF76/76   Order.gif (311 bytes) Aircraft plywood 76mm X 76mm X 1/16" "   discontinued .40oz/set
RF95/190   Order.gif (311 bytes) Machined balsa 95mm X 190mm X 1/4" "   discontinued .90oz/set
RF75/155   Order.gif (311 bytes) Machined balsa 75mm X 155mm X 1/8" "   discontinued .30oz/set
RF54/75   Order.gif (311 bytes) Aircraft plywood 54mm X 75mm X 1/16" "   discontinued .45oz/set
RF87/217   Order.gif (311 bytes) Aircraft plywood 87mm X 217mm X 1/8" "   discontinued 2.50oz/set

FIN STOCK - AIRCRAFT PLYWOOD, BALSA & SUPER STRENGTH PHENOLIC



PLY6/6   Order.gif (311 bytes) Aircraft plywood 6" X 6" X 1/16"    $3.75/ea   1.00oz/ea
PLY12/12   Order.gif (311 bytes) Aircraft plywood 12" X 12" X 1/8"    $9.45/ea   8.00oz/ea
BAL3/32   Order.gif (311 bytes) Balsa 4" X 12" X 3/32"   $1.35/ea   .75oz/ea
BAL1/8   Order.gif (311 bytes) Balsa 4" X 12" X 1/8"   $1.65/ea   .90oz/ea
BAL1/4   Order.gif (311 bytes) Balsa 4" X 12" X 1/4"   $2.10/ea   1.00oz/ea
PHN12/32   Order.gif (311 bytes) Phenolic 12" X 12" X 1/32" Natural tan/brown
Super strong phenolic for high power rocketry
$10.95/ea 4 oz/ea
PHN12/16   Order.gif (311 bytes) Phenolic 12" X 12" X 1/16" Natural tan/brown
Super strong phenolic for high power rocketry
$12.95/ea 6 oz/ea
PHN12/18   Order.gif (311 bytes) Phenolic 12" X 12" X 1/8" Natural tan/brown
Super strong phenolic for high power rocketry
$21.85/ea 10 oz/ea

RECOVERY PARACHUTES


RRPN18   Order.gif (311 bytes) 18" diameter nylon, white-M127A1 "
Unused military - surplus
$ 4.95/ea   .50oz/ea
RRPN18/10   Order.gif (311 bytes) 18" diameter nylon, white-M127A1 " (PKG OF 10)
Unused military - surplus
$44.00/10   6oz/10
RRPN26   Order.gif (311 bytes) 26" diameter nylon, colored "   temp out
New
$ 15.00/ea   1.50oz/ea
RRPN36   Order.gif (311 bytes) 36" diameter nylon, colored "   temp out
New
$21.00/ea   3.00oz/ea
RRPN43   Order.gif (311 bytes) 43" diameter, coton, white - M44-5 "
Used military surplus, demilled
$13.95/ea   16.00oz/ea
RRPN58   Order.gif (311 bytes) 58" diameter nylon, colored "   temp out
New
$38.50/ea   7.00oz/ea
RRPN70   Order.gif (311 bytes) 70" diameter nylon, colored "   temp out
New
$49.95/ea   10.00oz/ea

MOTOR MOUNTS & THRUST RING SETS



These motor mount sets come with motor tube, internal thrust ring and centering rings. They fit the airframe tubing as listed. MM4/113 & MM8/113 are two piece mount rings that slip over engine and adapt it to fit the airframe. All sets come with instructions.

MM4/113   Order.gif (311 bytes) Adapts 19mm (4oz) engines to airframe RBT113   $1.60/set   .40oz/set
MM8/113   Order.gif (311 bytes) Adapts 24mm (8oz) engines to airframe RBT113   $1.60/set   .25oz/set
MM24/160   Order.gif (311 bytes) Adapts 24mm (8oz) engines to airframe RBT160   $4.05/set   .80oz/set
MM29/160   Order.gif (311 bytes) Adapts 29mm (1lb) engines to airframe RBT160   $3.50/set   .60oz/set
MM29/200   Order.gif (311 bytes) Adapts 29mm (1lb) engines to airframe RBT200   $3.50/set   .50oz/set
MM38/225   Order.gif (311 bytes) Adapts 38mm (3lb) engines to airframe RBT225   $5.95/set   1.00oz/set
MM38/390   Order.gif (311 bytes) Adapts 38mm (3lb) engines to airframe RBT390   $9.75/set   1.80oz/set

Weights listed for all motor mounts are actual weights - ship weights are approx twice that

MOTOR MOUNT ADAPTER

These mounts adapt smaller diameter motors for use in larger motor mounts - smaller motors must have adequate power for the rockets launch weight.

MMA24/29   Order.gif (311 bytes) Adapts 24mm motors to 29mm mounts   $2.00/set   .40oz/set
MMA29/38   Order.gif (311 bytes) Adapts 29mm motors to 38mm mounts   $3.15/set   .60oz/set


COMPOSITE HIGH POWER ROCKET MATERIALS

MOTOR CASINGS - PHENOLIC

Paper base XX Phenolic tubing - a standard for the manufacture of expendable composite rocket motors. Simply line with carbon cloth or paper liners and cast the propellant. Sold by the foot (maximum shipping length is 24"). Note:the 16" lengths are limited in supply (end cuts) - call for availability or list substitute in the event they are out of stock.

PHEN24  Order.gif (311 bytes) 24mm - .75" ID X .875" OD $6.25 2oz/ft
PHEN24/16  Order.gif (311 bytes) 24mm - same as above X 16" lengths ( .50") $8.15 3oz/ea
PHEN29  Order.gif (311 bytes) 29mm - 1.00" ID X 1.125" OD $6.25 3oz/ft
PHEN29/16  Order.gif (311 bytes) 29mm - same as above X 16" lengths ( .50") $8.15 4oz/ea
PHEN38  Order.gif (311 bytes) 38mm - 1.25" ID X 1.50" OD $11.60 6oz/ft
PHEN38/16  Order.gif (311 bytes) 38mm - same as above X 16" lengths ( .50") $15.35 7oz/ea



COMPOSITE ROCKET MOTOR TOOLING - CORE BURNING GEOMETRY - PHENOLIC CASINGS

Machined from solid 6061 tool stock aluminum for long life and designed for use with our phenolic motor casings listed above. Each set contains base, four propellant coring spindles (two each of two diameters), pulling handle, centering rings, 10 delay element liners and compression ram and complete instructions (propellant formulae not included). You can machine your own nozzles out of graphite, phenolic, fiberglass or Teflon rod stock or they can be made with our nozzle forming tool sets listed herein.

PHENTOOL24   Order.gif (311 bytes) 24mm - core burning grain      inquire about availability  $47.45/set 12oz/set
PHENTOOL29   Order.gif (311 bytes) 29mm - core burning grain         inquire about availability  $56.25/set 12oz/set
PHENTOOL38   Order.gif (311 bytes) 38mm - core burning grain         inquire about availability  $76.20/set 1 lb/set
PHENTOOL54   Order.gif (311 bytes) 54mm - core burning grain         inquire about availability  $90.15/set 2 lb/set


CENTERING RING AND BULKHEAD LINERS W/CENTER HOLE - 38mm & 54mm

These are the same as supplied with the composite rocket motor tooling listed above for phenolic cases. These kraft paper discs are used to center the coring spindle while curing and supply a permanent insulation barrier over exposed propellant grain thus constructing the bulkhead barrier. Simply epoxy the delay grain over the core spindle hole formed by the spindle and add chute activation charge. Also used to inhibit the nozzle end propellant grain to reduce surface area of burn, if desired.

D125/
D125/
D
D


order


SILICONE FLUID (POLYDIMETHYLSILOXANE / PDMS) RELEASE & ANTI-FOAMING AGENT

Used as a mold release agent for casting proprllants, it is first applied to the coring spindle, casting mold, etc.. For stick free removal of cast propellants, plastics, epoxies, etc.. Also effectively eliminates foaming when added to composite propellants. 2 drops per 5 lb batch is all that is required. Large 2 oz bottle goes a long way, enough for hundreds of applications.

C180SF
Silicone emulsion mold release and anti-foam propellant additive
$12.50/2 oz bottle


order

NOZZLE FORMING TOOL SETS - MOLDED GRAPHITE COMPOSITE ROCKET MOTORS

Machined from high carbon steel and aluminum, these tool sets offer the hobbyist a means to make high heat & erosion resistant graphite composite nozzles for use in higher combustion temp composite rocket motors and others. The sets consist of a heavy wall carbon steel mold sleeve, base with divergence forming cone and a ram which is completely adjustable according to the degree of erosion and heat/gas resistance required. You can design and produce nozzles to burn out slightly for core burning geometries or those that have little or no erosive loss to retain full pressure during combustion for bates grain and moon burning geometries, etc. Make 25 to 50 nozzles per hour for as little as $0.15 each! Using a mixture of powdered graphite and other materials, you simply add a measured amount of mix to the mold sleeve, compress to a mark on the ram and eject. The more pressure used, the higher the density and the more erosion resistant they are. Once you have several, they are cure baked in an oven and drilled any diameter you need for the proper exhaust vent - fully adjustable for pressure release! The sets produce nozzle pellets the diameters listed which are shrink controlled by the oven heat. They are designed to fit the casings listed for each but can be made to fit casings of similar size as well.

NM/P101   Order.gif (311 bytes)
1.010" (FOR 29mm CASE #PHEN29)
$77.85/SET (1 LB/SET)
NM/P130   Order.gif (311 bytes)
1.300" (FOR 38mm CASE #PHEN38)
$89.00/SET (1 1/2 LBS/SET)
NM/P188   Order.gif (311 bytes)
1.887" (FOR 54mm CASE #PHEN54)
$110.00 (2 LBS/SET)




NOZZLE MATERIALS - BLANK ROD STOCKS FOR MACHINING

Due to the wide range of burn durations, power ratings and grain geometries to choose from, we have added a variety of blank nozzle stocks for your custom designs. Listed according to their maximum heat resistance properties starting with the highest (lowest erosion) material - GRAPHITE. For those of you who have computer program designs using particular nozzle materials for specific erosion rates, we list their maximum temp resistance. The actual erosion points will be higher. This information supplies you with alternative erosion factors by choosing other nozzle materials. Sold only in increments of one foot. Note; materials listed with no pricing, we do not carry but list the information for your benefit.

NSGRA625
.625" dia Solid Graphite
±5000° F (oxidizes)
NSGRA750
0.75" dia Solid Graphite
±5000° F(oxidizes)
NSGRA100
1.00" dia Solid Graphite
±5000° F(oxidizes)
NSGRA125
1.25" dia Solid Graphite
±5000° F(oxidizes)

-------
Silicone Resins
+450° F
-------
G-7 Fiberglass
338° F
-------
G-10 Fiberglass
284° F

0.75" dia Phenolic XX
284° F
$11.30/ft  (6 oz)
1.00" dia Phenolic XX
284° F
$20.40/ft  (8 oz)
 NSPHE150
1.50" dia Phenolic XX
284° F
 NSPHE200
2.00" dia Phenolic XX
284° F

-------
Nylon 6/12
210° F
-------
Acrylic
180° F
-------
Nylon 6/6
170° F

.625" dia Fiberglass
170° F
$8.10/ft  (6 oz)
.750" dia Fiberglass
170° F
$9.60  (8 oz)
NSFG100
1.00" dia Fiberglass
170° F
NSFG125
1.25" dia Fiberglass
170° F
NSFG150
1.50" dia Fiberglass
170° F



order

NOZZLES - MACHINED, UNFINISHED

Cut, faced and machined to form convergence and divergence angles with pilot hole drilled for throat. You finish drilling/enlarging the pilot hole to form proper throat diameters as per your motor requirements. Finished nozzles may be used in expendable motors and by cutting an 'o' ring groove, in reloadable system designs as well. NO PRICING ON THESE YET

NSM/100FG 1.00" OD X 1.50" LONG - FIBERGLASS
NSM/100PH 1.00" OD X 1.50" LONG - PHENOLIC
NSM/150FG 1.50" OD X 2.00" LONG - FIBERGLASS
NSM/150PH 1.50" OD X 2.00" LONG - PHENOLIC
NSM/200PH 2.00" OD X 2.00" LONG - PHENOLIC




EPDM RUBBER - CHAMBER INSULATION

This thin rubber insulation is applied to the inner wall of the motor chamber to insulate the casing from the combustion heat generated during operation, thus increasing the life of reuseable casings and allowing adequate low cost materials to be used as expendable motors. The propellant may be cast directly into the EPDM lined chambers or an additional liner of carbon cloth be placed between EPDM and propellant thus allowing the higher cost EPDM to be used again. Unused NASA surplus.

EPDM - Carbon Fiber Filled                      21.50" wide X .109" thick
$6.00/ft   (12 ozs/ft)
EPDM - Textured For Bonding                   21.50" wide X .109" thick
$2.50/ft   (12 ozs/ft)
EPDM - Textured For Bonding (nat rubber) 21.50" wide X .109" thick
$4.50/ft   (2 lbs/ft)
EPDM - Asbestos/Silica Filled                   21.50" wide X .109" thick
$6.00/ft   (3 lbs/ft)
EPDM - Natural Rubber                            21.50" wide X .109" thick
$9.60/ft   (5.5 lbs/ft)

Basic applications; .030" = F through I motors,   .101" & .109" = I through K motors,   .215" = L and larger


order


CARBON GRAPHITE CLOTH HEAT SHIELDING - LINER & GASKET MATERIAL

Used by NASA for heat shielding and protection where direct heat, flame or high heat transfer is a problem. Flexible cloth-like weave (carbonized rayon fibers) and super thin web (.027" thick) enables its use most anywhere including fireproof gaskets and casing liners in rocket motors or other devices, blast plate protection on launch pads or welding applications, firewalls, etc. Use to line inner casings and cast or compress propellants, smoke comps, etc. directly into them for protection from burn-through. Lowest cost insurance money can buy! Easily cut with scissors or punched with disc cutters.Can be "painted" with epoxy or fiberglass resin and sandwiched together in a hot press to form under pressure and heat. Make most any thickness, including blocks for lathe turning into nozzles or nose cones (hollow out for nose cones).

"CLOTH OF A THOUSAND USES"

Stock # Description Price Weight Hazmat
Order.gif (311 bytes) CCLOTH/2.5 Graphite Cloth  .027" thick X 2.5" wide $0.35/ft .50 oz/ft -----
Order.gif (311 bytes)    CCLOTH/3 Graphite Cloth  .027" thick X 3" wide $0.40/ft .50 oz/ft -----
Order.gif (311 bytes)    CCLOTH/5 Graphite Cloth  .027" thick X 5" wide $0.65/ft .85 oz/ft -----
Order.gif (311 bytes)    CCLOTH/6 Graphite Cloth  .027" thick X 6" wide $0.80/ft 1.00 oz/ft -----
Order.gif (311 bytes) CCLOTH/6.5 Graphite Cloth  .027" thick X 6.5" wide $0.85/ft 1.00 oz/ft -----
Order.gif (311 bytes)    CCLOTH/7 Graphite Cloth  .027" thick X 7" wide $0.90/ft 1.20 oz/ft -----
Order.gif (311 bytes)  CCLOTH/7.5 Graphite Cloth  .027" thick X 7.5" wide $1.00/ft 1.25 oz/ft -----
Order.gif (311 bytes)     CCLOTH/9 Graphite Cloth  .027" thick X 9" wide $1.25/ft 1.45 oz/ft -----
Order.gif (311 bytes)   CCLOTH/10 Graphite Cloth  .027" thick X 10" wide $1.45/ft 1.75 oz/ft -----
Order.gif (311 bytes)   CCLOTH/11 Graphite Cloth  .027" thick X 11" wide $1.65/ft 1.85 oz/ft -----
Order.gif (311 bytes)   CCLOTH/12 Graphite Cloth  .027" thick X 12" wide $1.85/ft 2.00 oz/ft -----
Order.gif (311 bytes)   CCLOTH/42 Graphite Cloth  .027" thick X 42" wide $4.65/ft 8.00 oz/ft -----


order


CHAMBER & PROPELLANT LINER STOCK - FIBERGLASS .040"

High tensile strength semi-rigid heat resistant fiberglass sheathing, textured for high strength bonding to various substrates. Can be used as chamber liner in both composite propellant systems and hybrid motors to increase strength and act as a heat sheild between propellant liner and motor casing. Can be used in motor casings of two inch diameters and up by dipping in boiling water to soften before molding into place. Once cool, it retains its shape. Hundreds of crafting applications to make forms for other objects or devices.

FCLOTH/5   Order.gif (311 bytes)
Fiberglass Cloth .040" thick X 5.00" wide
$1.10/ft   (2 oz/ft ship wt)
FCLOTH/6   Order.gif (311 bytes)
Fiberglass Cloth .040" thick X 6.00" wide
$1.45/ft   (3 oz/ft ship wt)
FCLOTH/6.25   Order.gif (311 bytes)
Fiberglass Cloth .040" thick X 6.25" wide
$1.50/ft   (4 oz/ft ship wt)
FCLOTH/6.50   Order.gif (311 bytes)
Fiberglass Cloth .040" thick X 6.50" wide
$1.55/ft   (4 oz/ft ship wt)
FCLOTH/9   Order.gif (311 bytes)
Fiberglass Cloth .040" thick X 9.00" wide
$2.35/ft   (5 oz/ft ship wt)
FCLOTH/48   Order.gif (311 bytes)

Fiberglass Cloth .040" thick X 48.00" wide
This length requires an extra shipping carton by itself

$9.60/ft   (14 oz/ft ship wt)



NOZZLE INSULATION & BUSHING STOCK - FIBERGLASS

Often the choice for suitable low cost or scrap expendable motor casing material doesn't quite match available bulkhead and nozzle stocks. This high strength, rigid, cured, heat resistant, fiberglass sheathing may be epoxy laminated inside casing to fit smaller nozzle od's. It's rough texture easily accepts epoxies and bonds well to both motor casing and nozzle. Also acts as an insulator to drain extreme heat being transferred by highly conductive nozzle materials such as graphite or exotic metals. Thus, protecting the casing from possible burn through or other damage. Can be cut with shears or scissors, drilled and machined. All are fiberglass cloth and .040" thick.


FCLOTH/1.5     Order.gif (311 bytes)
                                      1.50" WIDE
           $0.35/FT
FCLOTH/1.75   Order.gif (311 bytes)
1.75" WIDE
$0.40/FT
FCLOTH/2        Order.gif (311 bytes)
2.00" WIDE
$0.50/FT
FCLOTH/2.5     Order.gif (311 bytes)
2.50" WIDE
$0.65/FT
FCLOTH/3.25   Order.gif (311 bytes)
3.50" WIDE
$0.85/FT
FCLOTH/4       Order.gif (311 bytes)
4.00" WIDE
$1.10/FT
FCLOTH/4.5    Order.gif (311 bytes)
4.50" WIDE
$1.25/FT




HTPB & PBAN ROPELLANT PACKAGES



EACH KIT INCLUDES ENOUGH MATERIALS TO MAKE APPROX. 6 LBS OF PROPELLANT WITH CHEMICALS LEFT OVER! SIMPLY PURCHASE MORE OXIDIZER TO PRODUCE UP TO 75 LBS OF PROPELLANT!

THE HTPB KIT COMES WITH THE FOLLOWING:


142 PG. MANUAL - "PLASTIC RESIN BONDED ROCKET FUEL SYSTEMS" - VERSION III
1 GALLON R-45 HTPB, RESIN, HYDROXYL TERMINATED
1 QT 2-ETHYLHEXYL ACRYLATE, LIQUID PLASTICIZER
8oz ISOPHORONE DIISOCYANATE, CURATIVE
8oz HX-878 BONDING AGENT
1 LB FERRIC OXIDE, BURN RATE CATALYST
2 LBS 200 mic AMMONIUM PERCHLORATE, OXIDIZER
2 LBS 90 mic down superfine AMMONIUM PERCHLORATE, OXIDIZER

ALL THIS, A TOTAL VALUE OF OVER $194.15!


You Save 10%

YOURS FOR ONLY $174.75!!

No ATFE required to purchase - Non-hazmat shipping bu US Mail

SHIPPING WT - 19 LBS
SHIPPING CLASS - OXIDIZER
STOCK # PKGHTPB


THE PBAN KIT COMES WITH THE FOLLOWING:

142 PG. MANUAL "PLASTIC RESIN BONDED ROCKET FUEL SYSTEMS" -VERSION III
1 GALLON PBAN, RESIN, CARBOXYL TERMINATED
1 QT 2-ETHYLHEXYL ACRYLATE, LIQUID PLASTICIZER
8 oz DER -331 EPOXY RESIN, CURATIVE
8oz HX-878 BONDING AGENT
1 LB FERRIC OXIDE, BURN RATE CATALYST
2 LBS 200 mic AMMONIUM PERCHLORATE, OXIDIZER
2 LBS 90 mic down superfine AMMONIUM PERCHLORATE, OXIDIZER

ALL THIS, A TOTAL VALUE OF OVER $166.35!


You Save 10%

YOURS FOR ONLY $149.70!!

No ATFE required to purchase - Non-hazmat shipping bu US Mail


SHIPPING WT -20 LBS
SHIPPING CLASS - OXIDIZER
STOCK # PKGPBAN




VELOSTAT ELECTRICALLY CONDUCTIVE PLASTIC STORAGE TUBING
Heavy 4 mil X 8 1/4" wide black plastic tubing for storage and protection from static and eletrical discharge. We have continuous rolls and will heat seal one end if you specify. Order any length you wish for storing rocket motors (or any other pyrotechnic devices), eletrical parts, etc. Large enough to store items up to 5" in diameter - any length you wish. Heat sealable.

VELO814 - Velostat 8 1/4" wide plastic tubing - SALE PRICED!! - 38/ft - 1oz/ft ship wt



HIGH TEMPERATURE & CORROSION RESISTANT "O" RING GASKET & THREAD LUBRICANT
NASA surplus (Unused/New) Conoco #2 high temperature and corrosion resistant calcium grease/sealant for lubricating threads and "O" rings on reloadable motor systems and any other similar purpose. Reduces pressure leakage and heat damage.

CONGRS/2 - Conoco high temperature calcium sealant/lubricant - $4.25/16oz tub - 20oz/can ship wt.




VACUUM SEALANT TAPE - 1/2" x 1/8" x 30'
Black 1/2" wide X 1/8" thick X 30' long rolls of "Vac Pac" vacuum sealing tape used to seal non-threading covers on vacuum chambers. It is tacky on both sides and pliable to most any shape of container for perfect non-leaking vacuum usage. Can be used over and over.


VACSEAL - Vacuum sealing tape - Single rolls - $3.85/roll - 1 1/2 lbs/roll ship wt.


VACSEAL - Vacuum sealing tape - case of 32 rolls - $79.00/case ($2.00/roll) - 40 lbs ship wt




CERAMIC & OTHER HIGH REFRACTORY POWDERS

The following refractories can be used for heat shielding and/or to make plugs and exhaust vents (nozzles) in rocket motors, smoke devices, etc., etc. They are listed in order according to thier heat resistance, with clay being the lowest @ 2300F and is used to make objects that are baked in an oven @ 1600F, forming the ceramic glass figurines.  Grog is crushed ceramic 'grit' added to fire clay to add texture to the finished figurines or add the "bite" necessary to hold nozzles in place when compressed within paper casings as with black powder type rocket motors.

C133
order

Ceramic fire clay - resists to 2300F $2.35/lb $11.25/5 lbs -----
C147B
Grog abrasive grit - resists to 2300F $3.95/lb $17.95/5 lbs -----
C104A
Aluminum Oxide - resists to 3761F $8.95/6oz ----- -----
REFRAC6
order

Refrac 6000 Castable Nozzle Refractory
Resists heat and abrasion to 3300° F

$6.95/lb $33.00/5 lbs -----
C1621
order
Magnesium Oxide - resists to 5165F $8.65/lb $40.15/5 lbs -----
C147
order
Graphite powder - resists to 5800F $8.85/lb $40.20/5 lbs -----




CARBOSPHERES - CONDUCTIVE CARBON POWDER - HOLLOW MICROSPHERES

This specially developed, low density carbon powder was ordered by NASA for the (now cancelled) New Advanced Space Shuttle Project. The material cost the government well over $125.00 per pound and was never used. We have all 80 drums @50 lbs net each. Although the manufacturer could give us no information on it's application, they did tell us the material is pure carbon, low density (.198 g/cc), light weight, conductive powder of 99.7 wt % passing 50 mesh and 22.7 wt % passing 325 mesh. Capable of withstanding temperatures well in excess of 4000F and very lightweight, it should make excellent nozzles to increase heat resistance and reduce both weight and abrasive wear on spindle. It may also be used as a mold release agent (dry lubricant) in that it is "slick" like it's older brother Graphite - yet lighter in weight. Also great for use in conductive bridge-wireless electric igniters!! Can be milled to reduce particle size if needed. Full 50 lb drums can be shipped by UPS.

Order.gif (311 bytes)   #CCARB - Carbospheres carbon powder - hollow - $5.35/lb       $24.45/5 lbs

Order.gif (311 bytes)   #CCARB - Special 50 lb Drum - $4.25/lb - 50 lbs ($212.50) - 68 lbs ship wt.








Firefox Enterprises Inc.
PO Box 2668
Pocatello, ID. 83204
(208)237-1976
